Ironbound

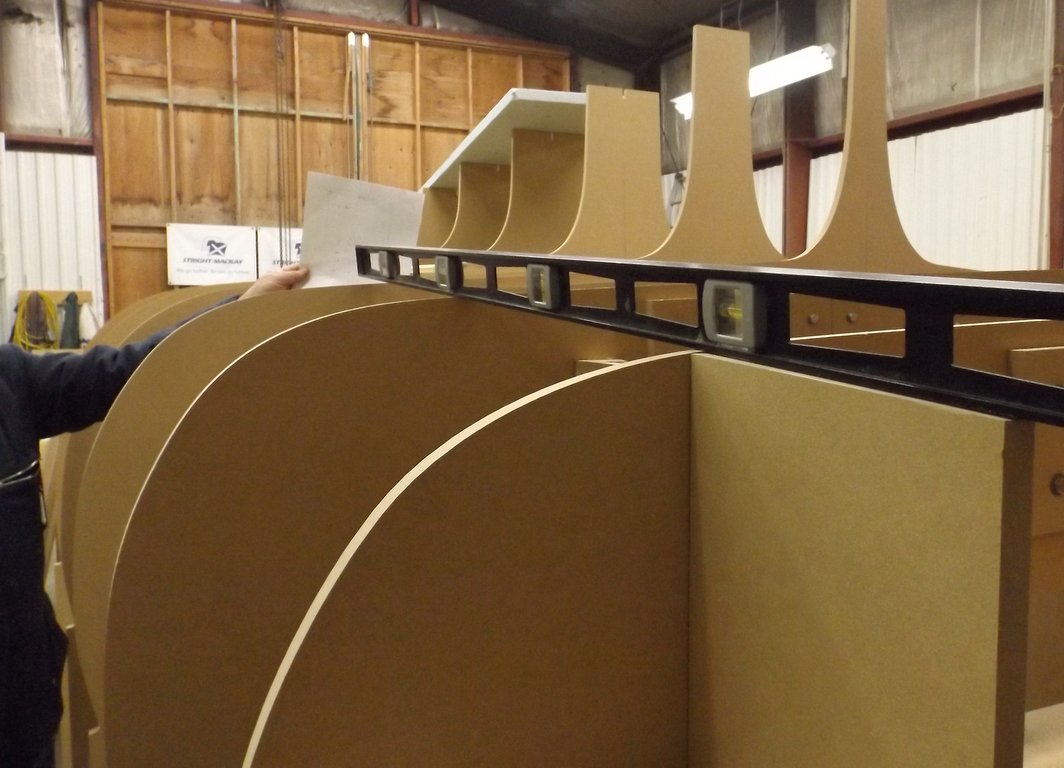

Ironbound mold frames

This was a new hull design for a 31′ launch for Nova Trawler Shipyard.  E.Y.E produced drawings for a set of molds for foam core construction, as well as structure drawings.




Particulars

LOA:  31′
Beam: 11’8 1/4″
Draft: 3’2″
Vessel Type: Launch
Main Engines: BETA 90
Shipyard: Nova Trawler Shipyard.



Machinery and Auxiliary Systems

Designed to go 8.5 knots with a 90hp Beta Marine engine.

Construction

This is a composite foam-core boat.

Design Renders

3D Modeling Render - 13016

Ironbound mold frames
