This vessel was designed around an existing hull, to be used as a solar powered tour boat by Island Solar Transit Systems in Prince Edward Island.
Particulars
| Length (hull): | 11.66 metres |
| LWL: | 11.3 metres |
| Beam: | 3.91 metres |
| Draft: | 0.57 metres |
| Vessel Type: | Water Taxi |
| Complement: | 49 people |
| Classification: | Near Coastal Class II (limited to Home Trade IV) |
| Main Engines: | Elco EP-70 electric motor |
| Propulsion: | Konrad 560 stern drive |
| Owner: | Island Solar Transit System |
Machinery and Auxiliary Systems
An Elco Ep-70 electric inboard motor is kept running by two strings of batteries under the floor. An array of solar panels on the roof charges these batteries while away from the dock.
Outfitting

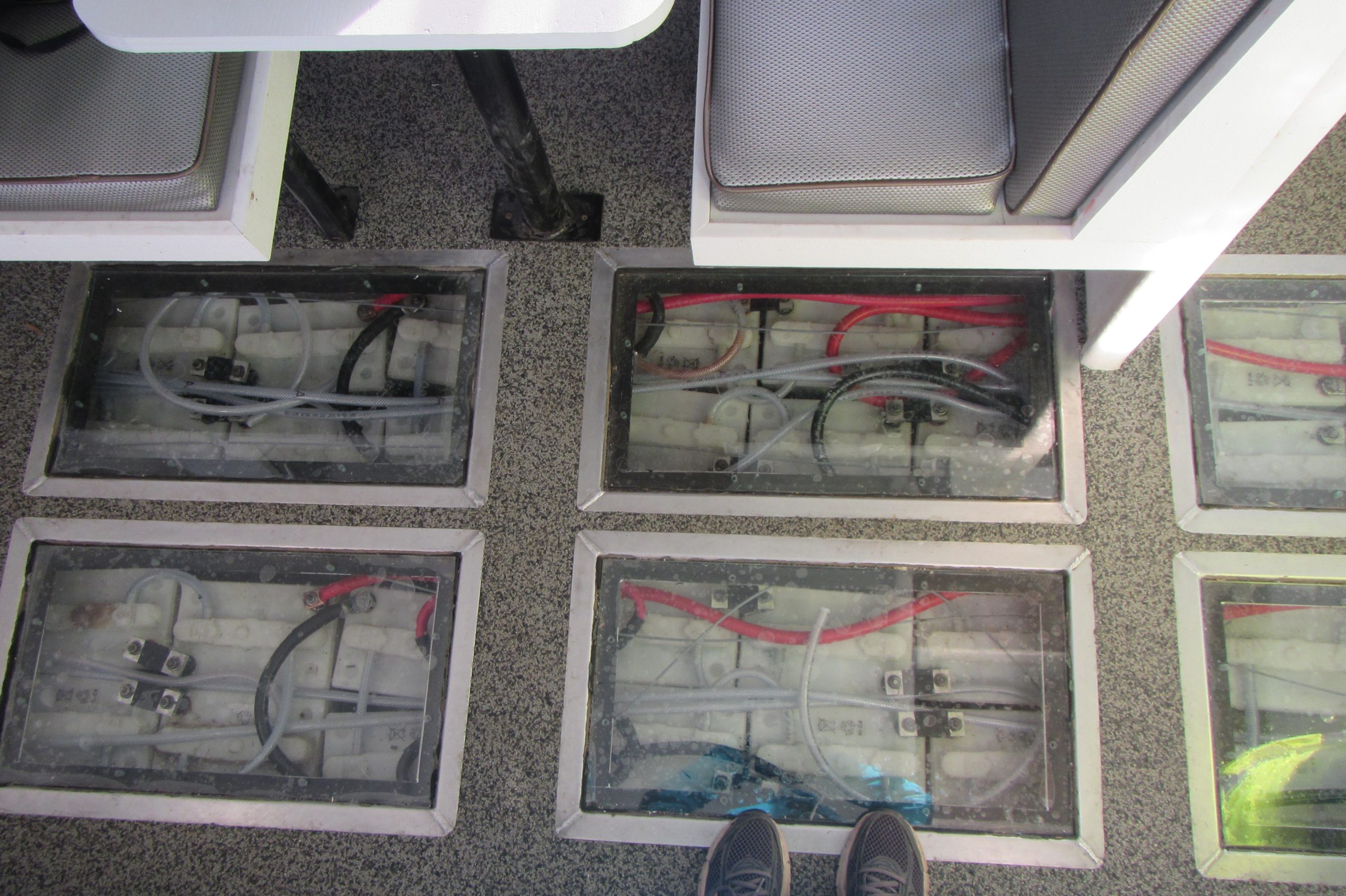

The boat is fitting with Lexan viewing panels in the floor, so passengers can see the engine and batteries powering the vessel.

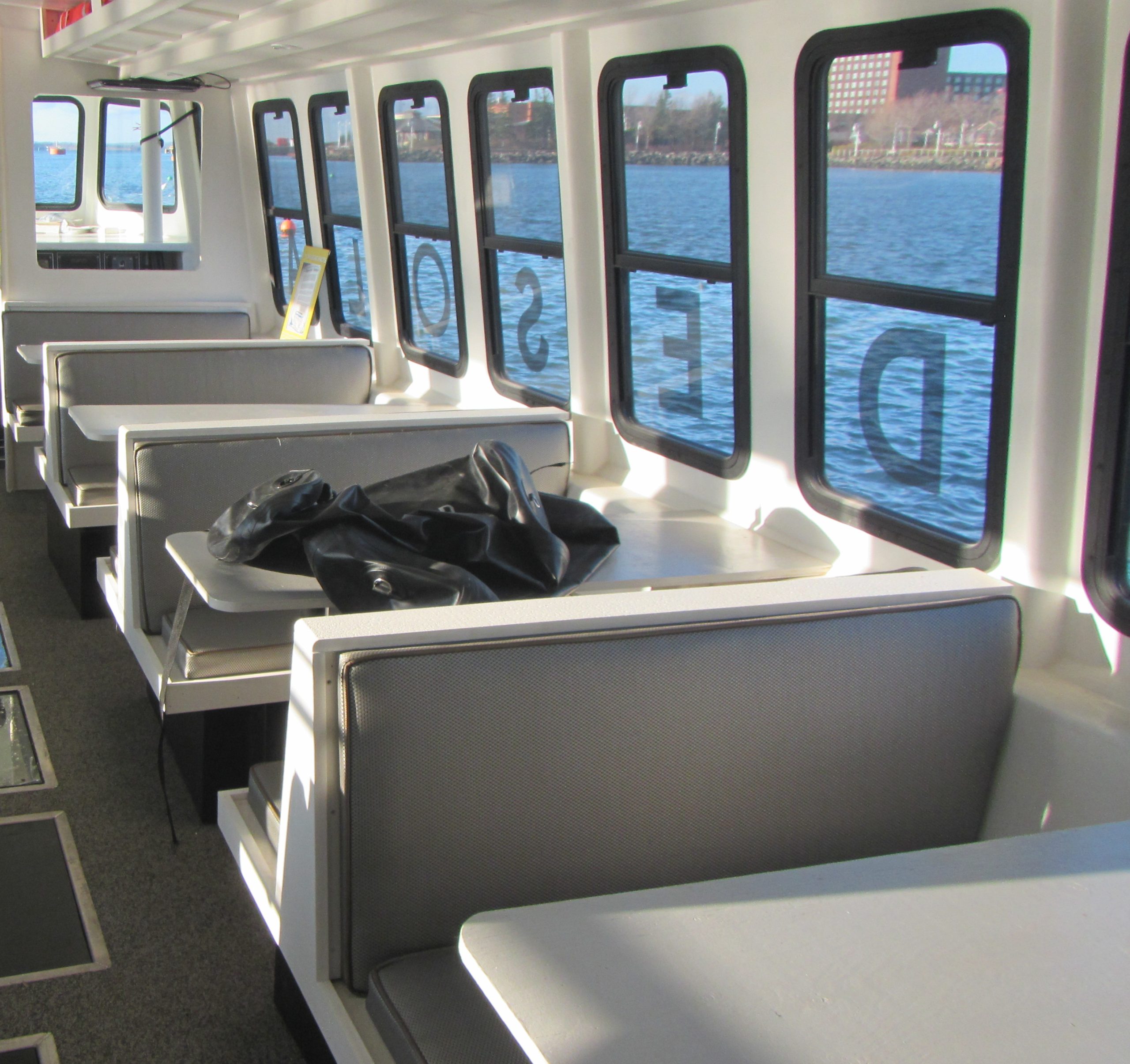

It is fitted out for dining cruises with seating for 44, and a grill located outside the kitchen area on the swim platform.
The vessel is also outfitted with all fire, lifesaving and navigational aids required by TCMS.
Construction
The vessel has a fiberglass hull, with a plywood cored upper structure stiffened with foam stiffeners and fiberglass.
Design Drawings
Design Renders
