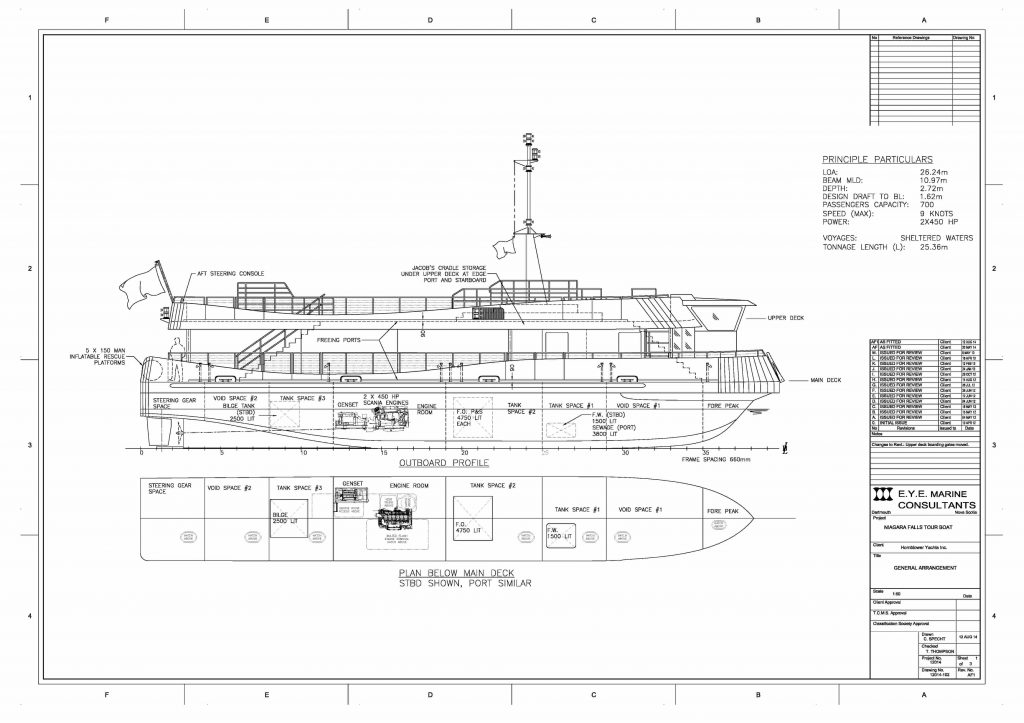

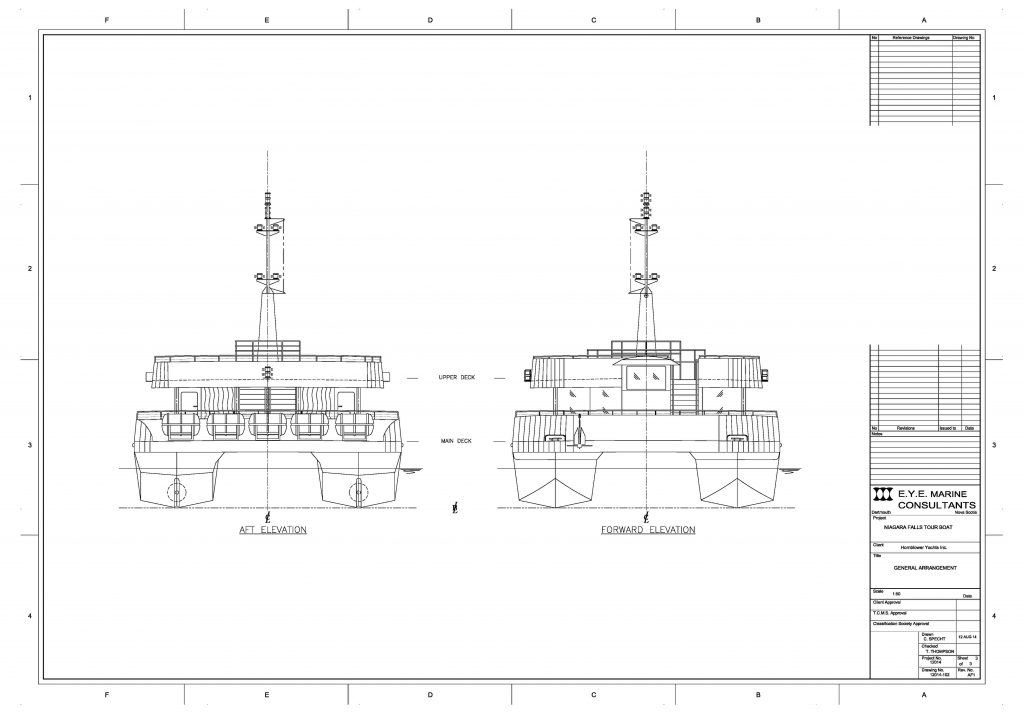

Based on a concept design by Elliot Bay Design Group, these 700 passenger vessels are catamaran tour boats for seasonal operation on the Niagara River, between the Falls and the Rainbow Bridge. They are currently in service with Niagara City Cruises. The design of the vessels is in compliance with the Rules of Lloyds Register and certificated by Transport Canada. A full set of production drawings were created, including lofted parts. They were modular designs of 3 parts each, for assembly at their final location. Once complete, a full set of as-fitted drawings were produced, as well as stability booklets for each.
Particulars
| LOA: | 26.24 metres |
| Beam: | 10.97 metres |
| Depth: | 2.72 metres |
| GRT: | 185 metric tons |
| Vessel Type: | Passenger Ferry |
| Complement: | 700 passengers, 6 crew – (706 total) |
| Classification: | Minor Waters Class II |
| Main Engines: | 2 x 450 BHP @1800RPM Scania DI13 |
| Cruise Speed: | 9 knots |
| Max Speed: | 9 knots |
| Fuel Capacity: | 9,500 liters |
| Water Capacity: | 750 liters |
| Owner: | Niagara City Cruises |
| Shipyard: | Hike Metal Products Ltd |
Machinery and Auxiliary Systems
A cruising speed of 9 knots is provided by two, high-speed marine diesel engines, each driving a fix-pitched propeller through a reversing reduction gear and line shafting.
Outfitting

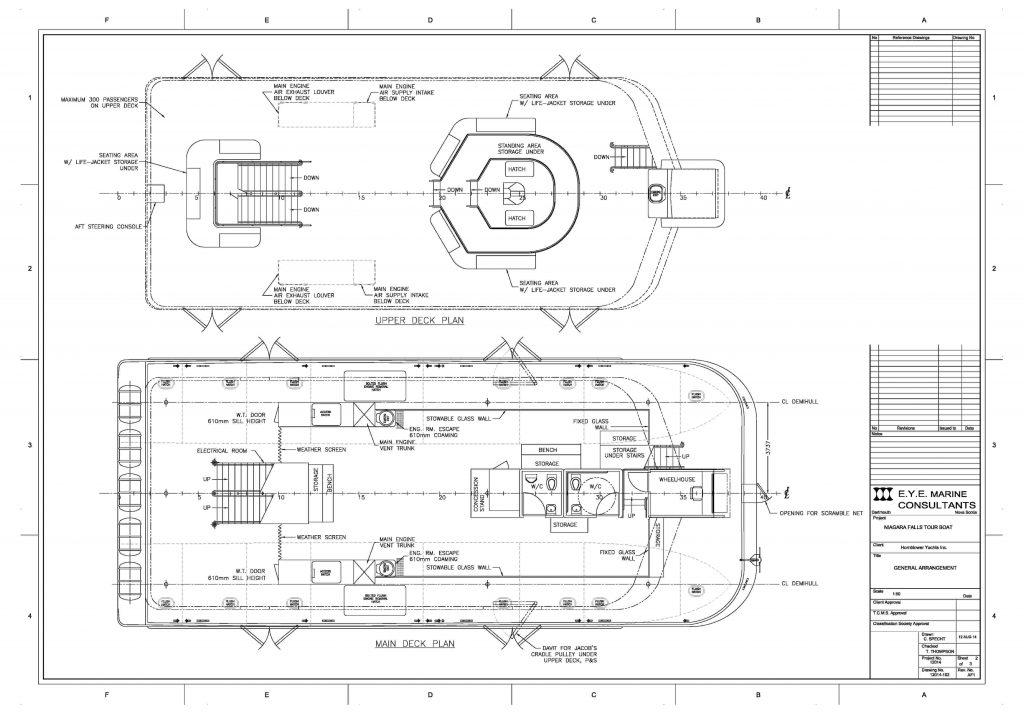

Two restrooms configured for access by mobility-impaired passengers, fully enclosed aluminum pilot house, and a forward and an aft stairway, constructed of aluminum and steel respectively.
Construction
The vessel has all welded steel hulls, transversely framed, with an aluminum upper deck structure.

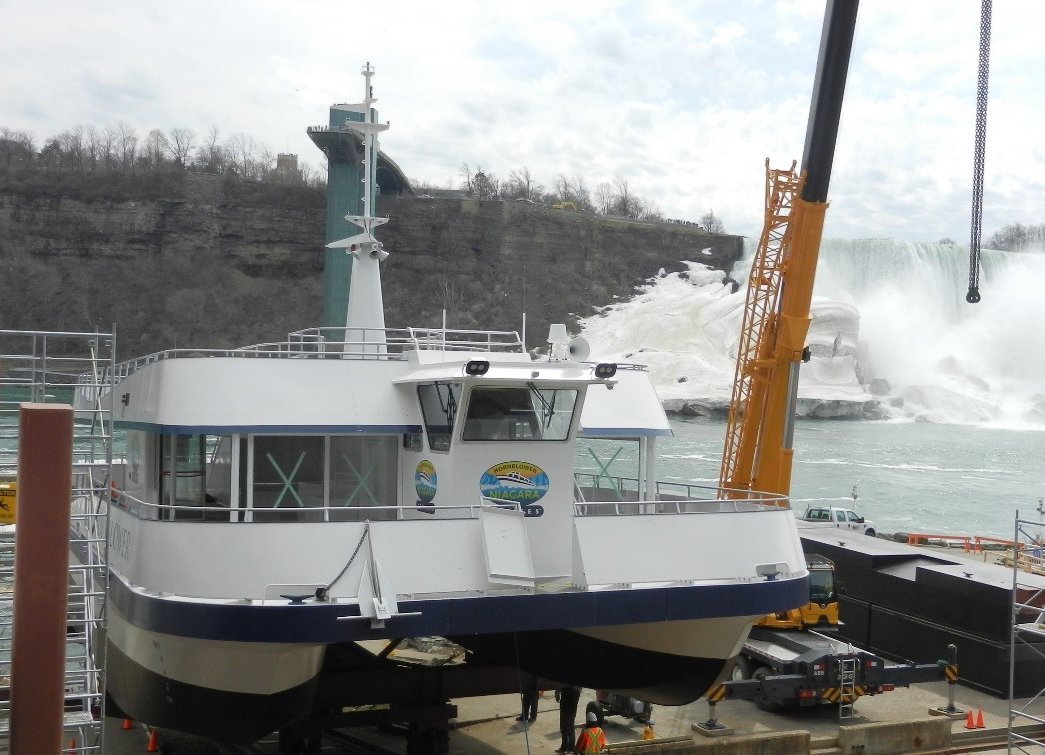

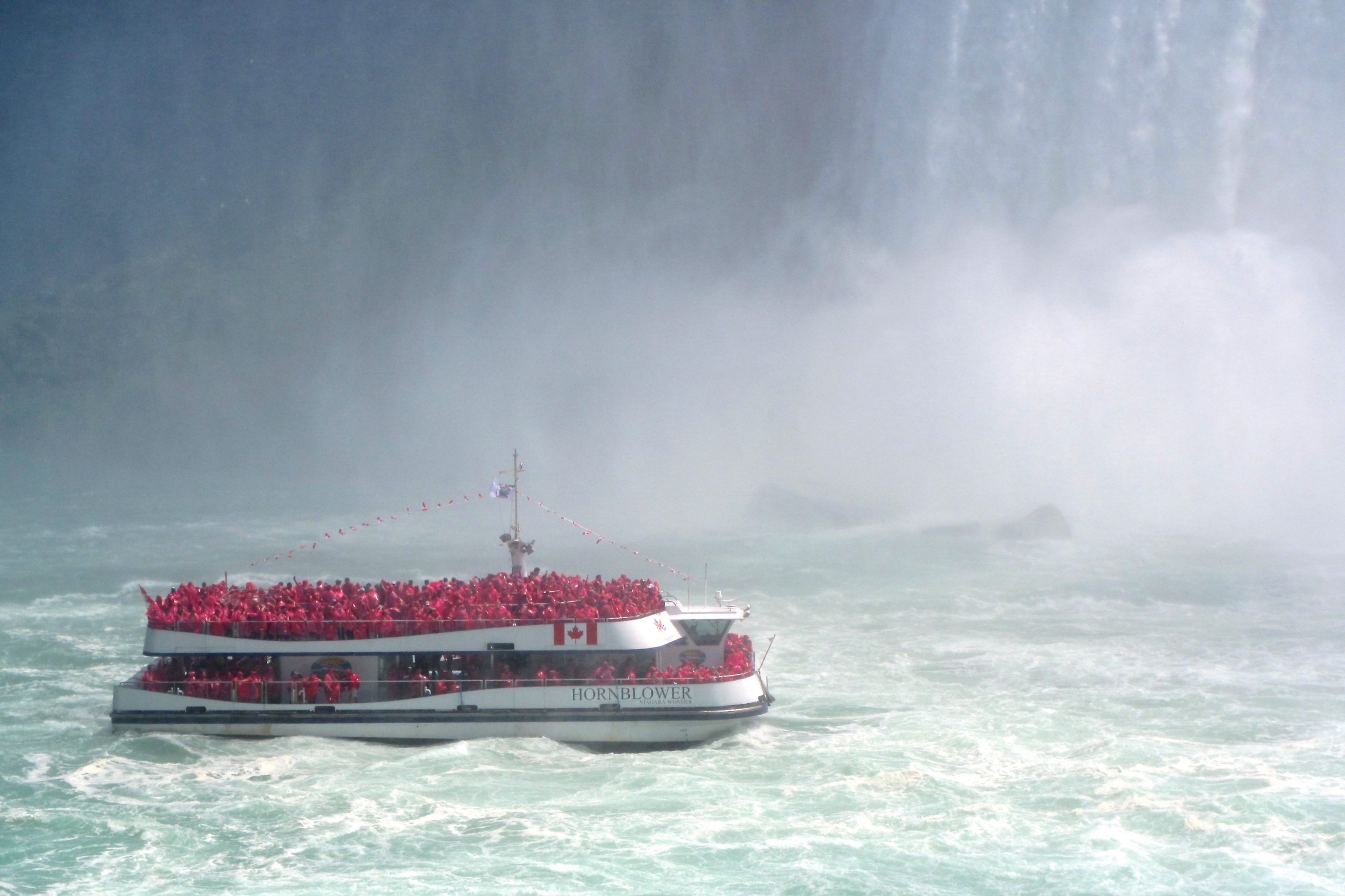

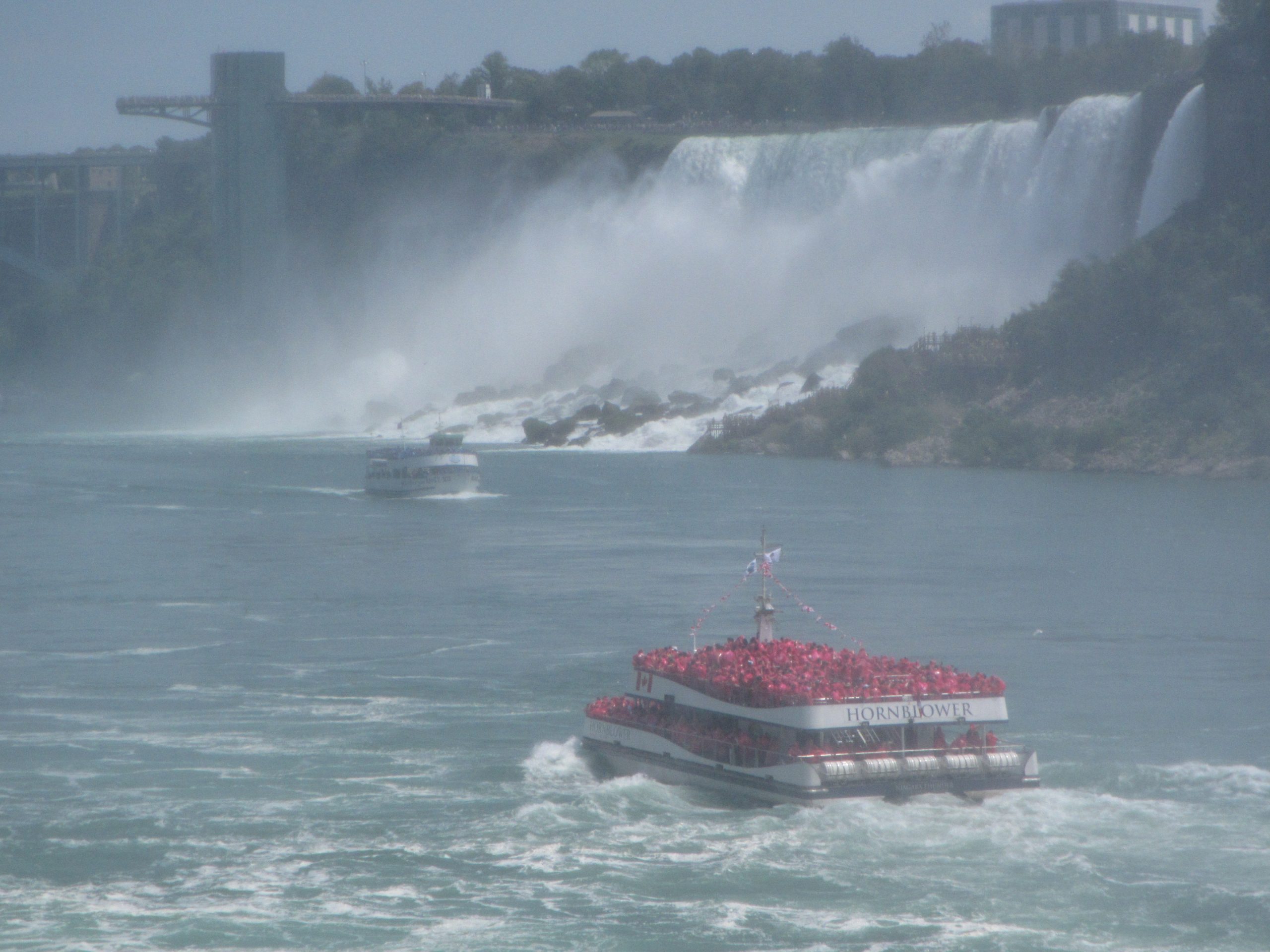

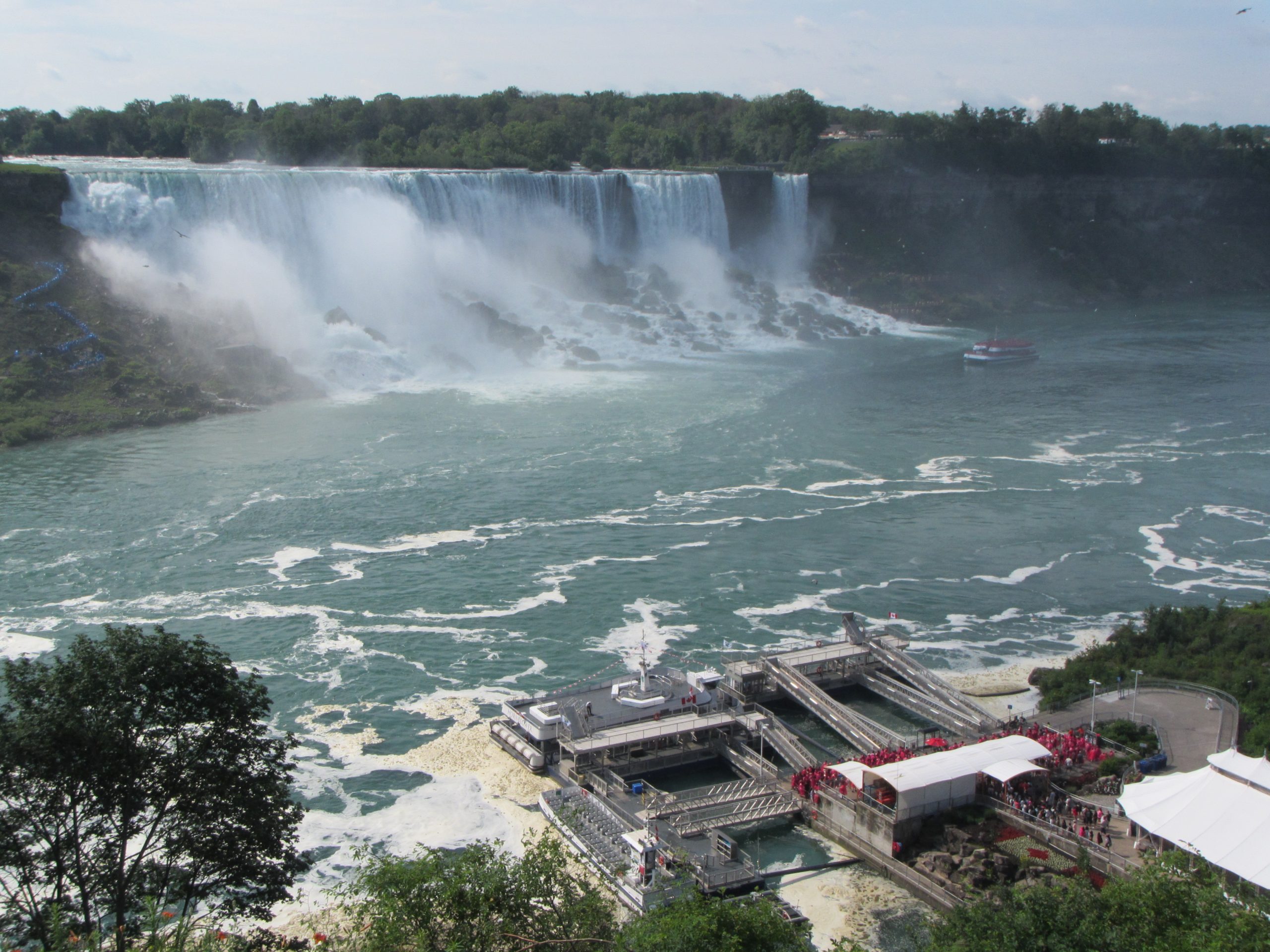

Renders and Pictures
