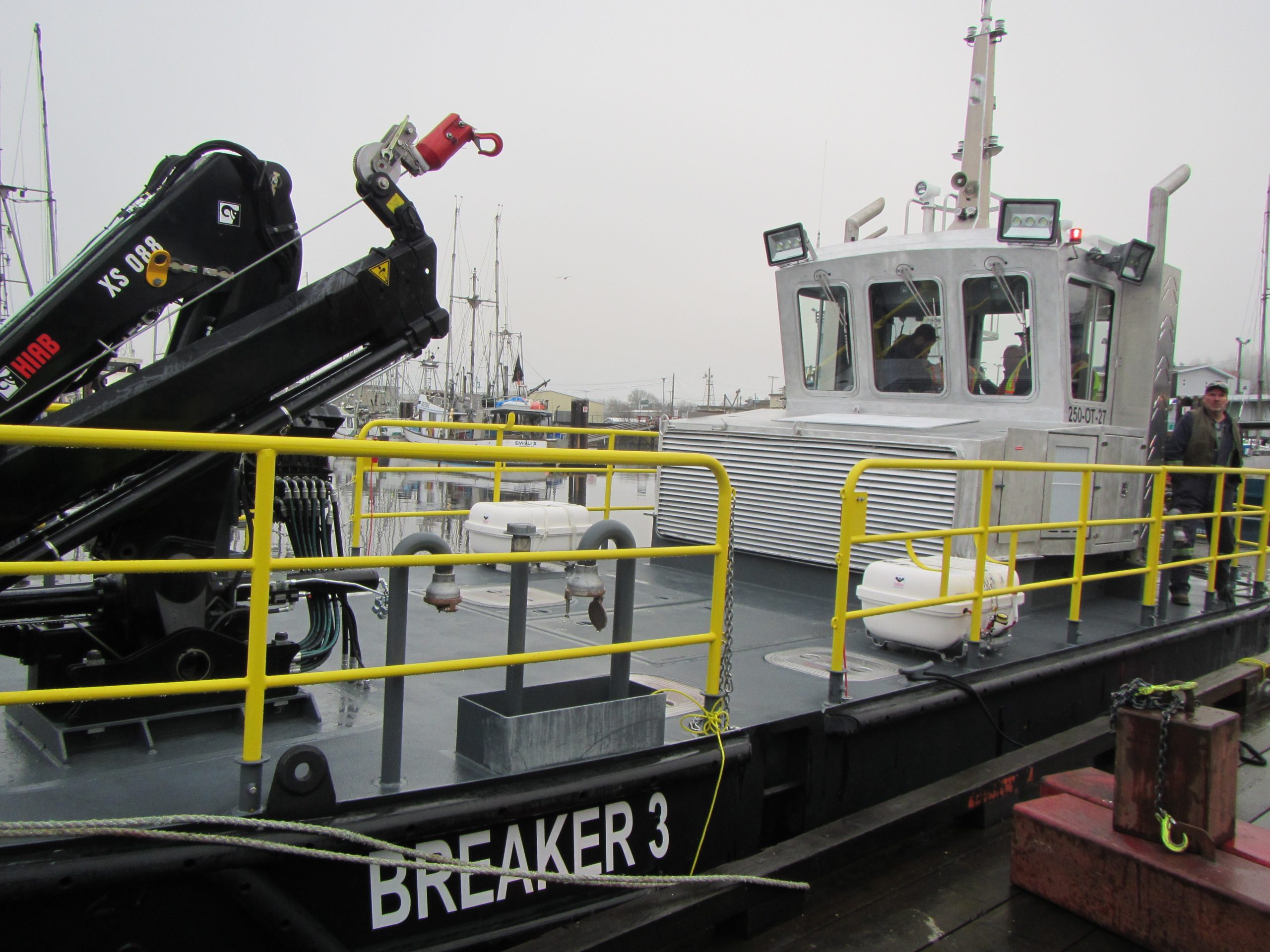

This project consisted of the design of one more ice breaking pond support vessel for Syncrude for use in the Alberta tar ponds. See also Breaker 1 & Breaker 2. Detailed production and system drawings and lofted parts were produced by E.Y.E. Marine Consultants for building by Canadian Maritime Engineering Ltd.
Particulars
| LOA: | 12.87 m |
| Beam: | 4.40 m |
| Depth: | 2.20 m |
| Speed: | 7 knots |
| GRT: | 19.96 GT |
| Complement: | 6 crew |
| Main Engines: | 2x 134 kW John Deere 4045AFM85-B-M2 |
| Classification: | Minor Waters, Class I |
| Owner: | Syncrude |
| Shipyard: | Canadian Maritime Engineering Ltd. |
Machinery and Auxiliary Systems
Powered by two 134 kW John Deere engines, this vessel is fitted with dual z-drive azimuthing propulsors with nozzles. Engine cooling is by dual radiators above deck.
Outfitting
A HIAB 088B telescoping crane is fitted at the bow.
Construction
Constructed of welded steel.
